730 VFFS Automatic Tube Ice Packing Machine

  • 730 VFFS Automatic Tube Ice Packing Machine
  • 730 VFFS Automatic Tube Ice Packing Machine
  • 730 VFFS Automatic Tube Ice Packing Machine

730 VFFS Automatic Tube Ice Packing Machine

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Port: SHANGHAI PORT

Basic Info

Model No.: ZD730/ ZD1100

Product Description

Brief Introduction:

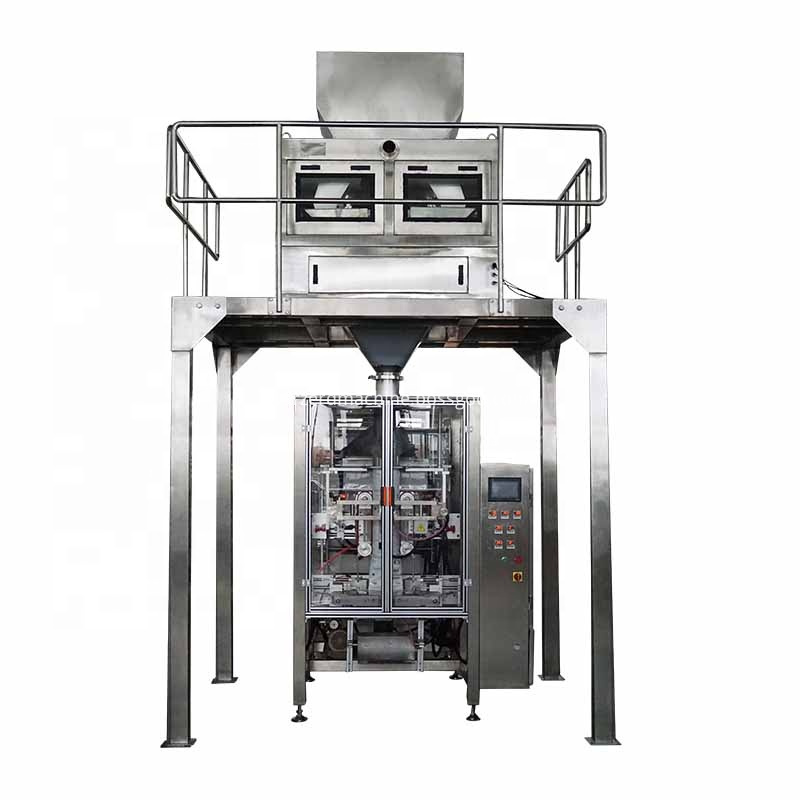

This vertical ice Packing Machine is suitable for 5kg to 10kg ice cube packaging or other frozen mixed fruits packaging machine. The ice cube packing machine is equipped with 4 heads linear weigher machine or 2 heads linear weigher or multihead weigher. Different bag size will select different packing machine models.

VFFS automatic tube ice packing machine can packing from 1kg to 10 kg ice cube into the plastic bag, laminated film or single layer PE film bag. This unit including weighing, metering, bag-making, packaging, sealing, printing, punching and countering, has automatic film position control function, both the horizontal sealing and film pull mechanisms adopt servo motor for transmission so as to guarantee high efficiency of the machine. It could be ideally combined with the vertical VFS packing machine.

This automatic ice packing machine model can also use for all kinds of granule packing like rice, corns, beans, etc.

Features:

A wide range of pouches: Pillow pouches, gusset bag.

High speed: Max 45 bags/min(laminated film/PE).

Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.

Easy to adjust: only about 10 minutes to change different pouches.

Frequency control: speed can be adjusted by frequency conversion within the range.

High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.

Safety and Hygiene:

No film, machine will alarm.

Machine alarm and stop when the inadequate air pressure.

Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Hygienic construction, the product contact parts are adopted sus304 stainless steel.

APPLICATION:

This automatic ice packing machine is suitable for granule products, Such as grains, rice, dried fruits, beans, nuts, salt, sugar, tea, seeds, detergent powder, etc. So this machine can also be used for frozen food packaging.

ice cube packing machine

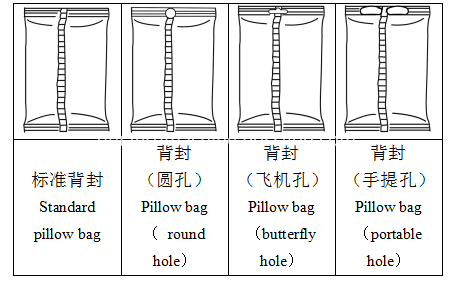

Sample bag type

ice packing machine

Options:

Gusset or chain bag device

Perforation device

Impulse sealing Jaw unit for polyethylene

Nitrogen Flushing

Automatic Ice Packing Machine Detailed description

automatic ice packing machine

Technical Parameters

Bag type

Pillow type bag; Gusseted bag (Option)

Speed

18 to 45 bags/min

Bag Length

50 to 460mm

Bag Width

80 to 350mm

Reel Film Width

≤7300mm

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

400mm (15.7in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification

Power Consumption

4.5KW

Compressed Air Requirement

0.6 MPa0.36 M3min



Granule Z Type Elevator Stainless steel 304 Platform Output Inclined Belt Conveyor Rotary table

ice bag sealing machine

Main configuration of the packaging machine

S/N

Name

Standard

1

Touch screen

Siemens / Germany

2

PLC

Siemens / Germany

3

Servo motor

Panasonic /Japan

4

Servo motor drive

Panasonic /Japan

5

Temp.control

Omron /Japan

6

Color code sensor

SICK/JAPAN

7

Pneumatic elements

Airtac / China Taiwan

8

Approach switch

Omron /Japan

9

Intermediate relay

Omron /Japan

10

Magnetic Valve

SMC/JAPAN

11

Ribbon Code Printer

TIANYI/China



All Verical Models Technicial information form :


Model(Roll film width)

320

420

540

730

920

1100

1500

Bag Length(mm)

80-180

80-300

80-400

100-400

150~600

200~900

200-1000

Bag Width(mm)

45-150

50-200

80-250

180-350

150~450

150~530

200~730

Max Width of Roll(mm)

320

420

520

720

920

1100

1500

Packing Speed(bags/min)

20-55

20-80

20-100

20-100

10~90

10-80

5-50

Air Consumption(Mpa)

0.65

0.65

0.65

0.65

0.65

0.65

0.65

Gas Consumption(m3/min)

0.3

0.3

0.4

0.4

0.5

0.5

0.5

Power Voltage (v)

220v/380v

220V/380v

220v/380v

220v/380v

220v/380v

220v/380v

220v/380v

Power (kw)

3kw

2.2KW

4kw

5kw

5kw

6kw

6kw

Weight(kg)

350

540

600

900

1000

1100

1200


Bag formers:

ice packing machine

Packing and Delivery:

ice cube packing machine

ice packaging machine


OUR SERVICE:

Pre-sale Service

1. Equipment model selection;
2. According to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.

5. Acceptance of the product;
6. Assist the client in drafting the construction plan;

Medium-sales Services
have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Service

1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
