Rotation Arm Pallet Stretch Film Packing Machine

Basic Info

Model No.: ER400PPS

Product Description

ER400PPS Rotation Arm Pallet Wrapping Machine

Semi-automatic Rotary Arm Stretch Wrapping Machine is best solution for unstable loads or lightweight loads or very heavy loads.

The loads are static, machine's arm is rotation around the loads to pack the loads with stretch film.Rotary arm will stop by safety bumper and relection PE sensing any objects enter into the rotating area when the machine is running. And there is buzzer and flash light during the machine running..

pallet wrapping machine, stretch film wrapping machine, pallet Packing Machine, pallet shrink wrapper, shrink wrapping machine,pallet wrapper, stretch wrapper

Advantage-- Save film consumption, Save labor, low investment, , improve packing efficiency, reduce loads damage during shipment.

Looking for top quality,reliable and cheaper Pallet Wrapping Machine ? Contact us soon !


Technical Data

Size of The Loads ( Pallets) to be Wrapped

Min load size

500mm (L) X 500mm (W)

Max load size

1300mm (L) X 1200mm (W)

Max load size diagonal

1800mm (70``)

Max load height

2000mm (79``) (Option: 2400mm)

Max load weight

Floor Capacity

Film Delivery System

Carriage

Power pre-stretch Film Delivery System, stretch ratio up to 300%.
Help you save Packing cost= Save money!!

Carriage door opens for effortless roll change and thread film

Film tension adjustable

Machine Performance

Packing efficiency

20-40 loads/hour

Load height sensing by photocell

YES

Wrap arm soft start & stop

YES

Wrap arm rotation speed:

3-15 rpm adjustable

Rotating inner diameter

2180mm (86``)

Wrap Arm Safety Stop

Rotary arm stop by safety bumper and reflection PE sensing any obstacle in the rotating area.

Carriage Up/down Speed

Adjustable

Electrical Features

Power supply voltage

220 V 1 Phase - 50/60 Hz

Power

1.5Kw

Machine weight & size

Machine size

4050mm (L) X 2200mm (W) X 3100mm (H)

Specification:


Control system:

Ø Advanced Siemens PLC & Siemens 7`` touch screen control system. User friendly.

Ø Parameters setting from touch screen

Top wrapping times, Bottom Wrapping times, Carriage Up/down times,Reinforce wraps, Over-wrap timer

Film tension, Turntable speed, Carriage up/ down speed adjustable

Ø Reinforce wrap allow more wrap on same location of the load. Used in cases where reinforcement is desired.

Ø Counter to count the numbers of pallets be wrapped

Ø Wrap cycle pause function : Pause the pallet wrapping machine. Used for inserting labels, corner, protection etc.

Ø Separate Auto-Start/Reset, Pause & E/S buttons

Ø Rotary arm stop by safety bumper and reflection PE sensing any obstacle in the rotating area.

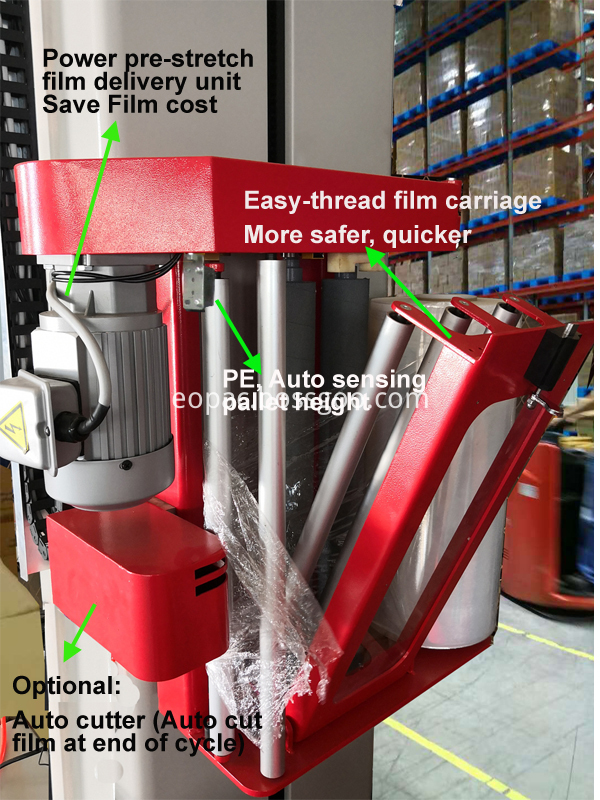

Easy-thread Power pre-stretch Film Carriage

Rotation Arm Pallet Wrapper

Application Photo

Rotation Arm Stretch Film Wrapping Machine


Sea-worthy Package box

Rotation Arm Pallet Wrapping Machine
