High Purity Alumina Metallized Ceramic Tubing

  • High Purity Alumina Metallized Ceramic Tubing
  • High Purity Alumina Metallized Ceramic Tubing
  • High Purity Alumina Metallized Ceramic Tubing
  • High Purity Alumina Metallized Ceramic Tubing

High Purity Alumina Metallized Ceramic Tubing

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 50 Piece/Pieces
    Delivery Time: 30 Days
    Packaging: Vacumm packaging with export carton
    Productivity: 50,000pcs/month
    Brand: Jinghui ceramics
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 200,000pcs/month
    Certificate: RoHS
    HS Code: 8547100000
    Port: Shenzhen Port,HongKong Port

Basic Info

Model No.: Customized

Product Description

High Purity Alumina Metallized Ceramic Tubing

We take use of advanced technology to provide industry extensive metallized ceramics, it covers a selection of raw materials to be the base of metallized ceramic components, for example aluminum oxide, zirconium oxide, beryllia, nitride aluminum. These metallized ceramic parts are used in critical assemblies brazed in high vacuum technology, medical technology, sensor technology, military and aerospace.

We are able to manufacture a diversity of different specification metallized ceramic tube from different design to different dimensions. Very small part-size to large part-size is availability, the min. diameter can be 1 mm, the largest diameter is up to 800 mm.
The typical plating included as below:

1. Raw ceramic + Molybdenum/Manganese (Mo/Mn) , or Tungsten (W) metallization

2. Raw ceramic + Mo/Mn metallization + Nickle plating 3.Raw ceramic + W metallization + Nickle plating 4.Raw ceramic + W metallization + Gold plating

Metallized Ceramic Cylinder


We are capable of achieve different grade precision level via fine grinding, CNC machining, cutting processes.

The finest tolerance can be +/-0.01 for overall dimensions. Also glazing treatment on internal, or external surface can be done by ourselves.

Features of metalized ceramics

● High bonding / brazing strength Low leakage rate High Insulation strength High mechanical strength

Low thermal expansion Resistant to corrosion free of rust ● Min. electric resistance and vacuum tightness

Application of metalized ceramic tube

Widely used in vacuum interrupters, Electron tubes,Gas discharge tube, Vacuum capacitor,Vacuum thyristors, Surge arresters,Thyristor housings,Diode housings,Power grid tubes,Traveling wave tubes,Insulator rings and cylinder,X-ray tubes and so on.

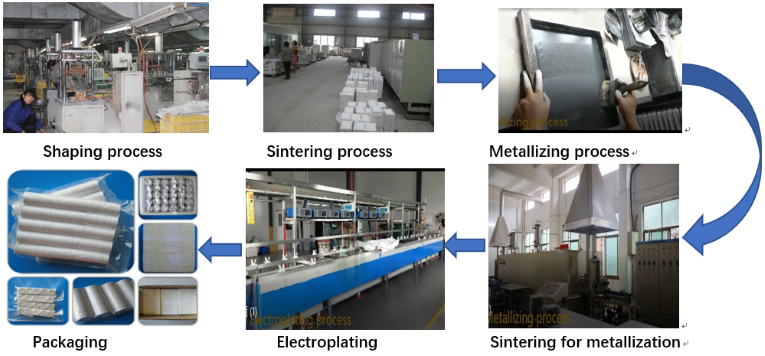

Main Manufacturing Flow Chat

We have a complete comprehensive of production equipment for metallized ceramics from shaping to electroplating.

It helps us to make the dimensional consistency very well. Also, helping us to offer a competitive price.

Manufacturing Process for Metallized Ceramics


FAQs (Frequently Asked Questions)

Q 1. Is it available to provide customize products?

A: We could support custom-made demand as per different dimensions, design and metallization and plating.

Q 2. When can I get the price?

A: We regularly quote within 24 hours after we get your inquiry.

Q 3. How long does the whole procedure being worked out?
A: After you place an order, the manufacturing time is about 25 working days.

Q 4. What about the transportation and delivery date?

A: Normally we use Int`l express by our forwarder, or with client`s account number. It is about 3~5 working days.

Q 5. How to ensure the quality?

A: The dimension out of any batch will be carried out sampling inspection per International AQL standard. 100% cosmetic inspection will be done.
